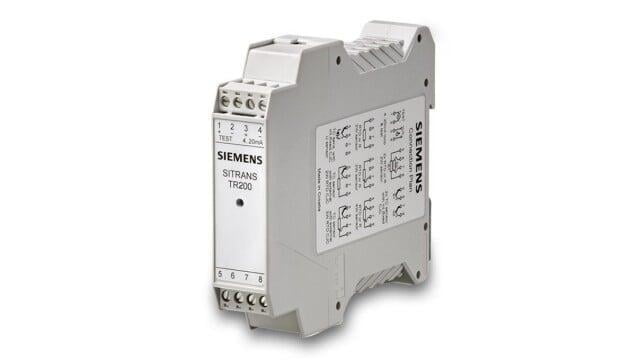

SITRANS TR200
Process Instrumentation
Temperature Transmitter
SITRANS TR200 is designed to support all common RTDs, thermocouples, resistance and millivolt sensors. Setup is quick and easy with the transmitter modem and SIPROM T software. This configuration tool can be downloaded for free. Unique user-friendly details are implemented: , one of them being the direct readout of the output current with a multimeter without having to open the 4 … 20 mA loop. A red/green LED indicates the device status at a glance.
Catalog Specifications
Benefits
Measures temperature with a linear output signal
Consistent performance - high accuracy across entire ambient temperature range
Reduces plant noise
Alarm signal for sensor break or short-circuit according to NAMUR 43
Electro magnetic compatibility (EMC) according toDIN EN 61326 and NE21
Galvanic insulation for accuracy and safety in thermocouple applications
Single- or dual-point trim
Custom characteristic curve for application of non-standard sensors
Difference- and average- measurement
Rugged design potted electronics, explosion protected versions for Europe
Detail
| Input | Resistance thermometers, thermocouples, resistance-type sensors, DC sources |
|---|---|
| Output | 4 ... 20 mA |
| Ambient temperature | -40 … +85 °C (-40 …185 °F) |
| Approvals | ATEX |
| Certificates | NEPSI, EAC Ex |
